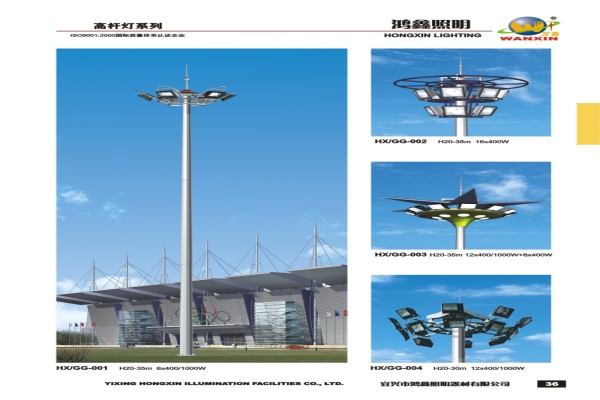

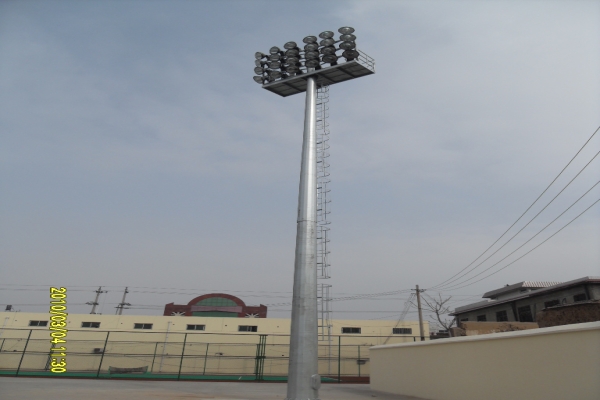

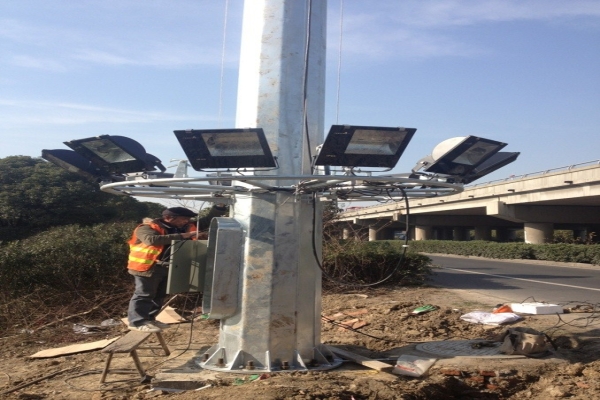

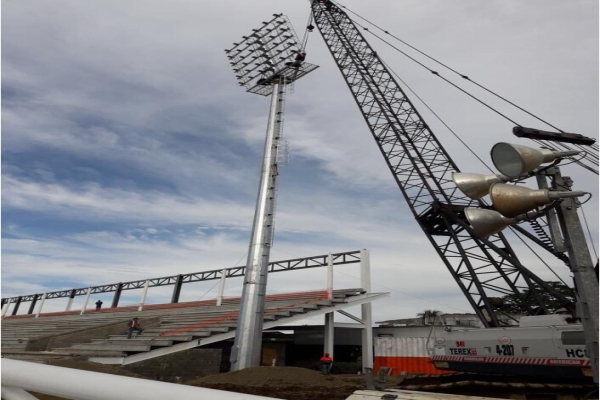

高杆灯
产品描述
具体详情请联系客服人员。
| Pole’s height | 5m to 15m |
| Round conical; Octagonal tapered; Straight square; Tubular stepped; | |
| Shape of pole | Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
| Brackets/ Arm | Single or double brackets/ arm are in the shape and dimension as per customers requirement |
| Length | Within 14m once forming without slip joint |
| Wall thickness | 2.5mm to 20mm |
| Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB |
| Jointing | Jointing of pole with insert mode,innerflange mode,face to face joint mode. |
| Base plate mounted | Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
| Ground mounted | The length buried underground as per customers requirement. |
| Galvanizing | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
| Powder coating | Pure polyester powder painting, color is optional according to |
| RAL Color stardand. | |
| Wind Resistance | Aganist wind pressure of 160Km/h |
| Manufacturing | According to GB/T 1591-1994. |
| Quality Control | We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant. |
